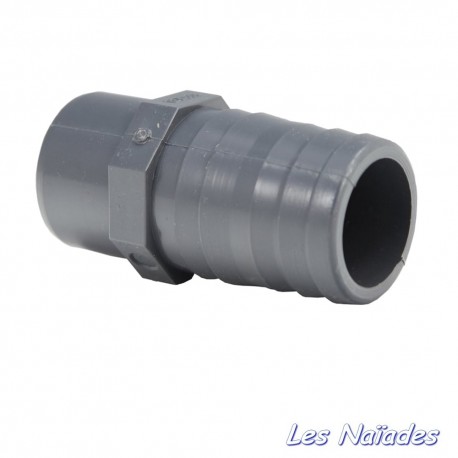

Ribbed PVC glue connection

This fitting, which is to be glued, makes it possible to connect a flexible pipe on one side, and on the other a PVC pressure accessory to be glued: for example, a PVC sleeve.

Example: 50 mm ribbed fitting

> 50 mm, ribbed side indicates the inside diameter of the reinforced flexible pipe to be inserted (which must be held with a clamp).

> 50 mm, the smooth side of the fitting, indicates the diameter of the smooth part of the fitting to be glued: to join, for example, a 50 mm PVC pressure pipe to this fitting, you therefore need a 50 mm PVC sleeve.

We offer two qualities PN 10 or PN 16 b (EXCEPT 32 and 63 mm * which are only available in quality 16 B)

PN 10b: standard quality

PN 16 b: very solid connection which does not risk breaking due to the tensions generated by the often very rigid flexible pipe.

*

32 and 63 mm fittings are only available in 16 B quality: 10 b quality has 30 and 60 mm fittings.

Side to be glued 32 mm - ribbed side 30 mm

Side to be glued 63 mm - ribbed side 60 mm
