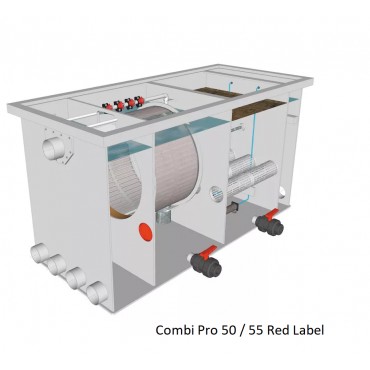

Combi Filter Smile Red Label

HOW DOES A DRUM FILTER WORK?

The filter consists mainly of a tank in which is housed a rotating drum: this drum is coated with a filter membrane of 120 microns (0.12 mm) on its periphery.

The dirty water from the basin is directed into the interior of the drum and, to leave this filter, the water must pass through the filter membrane.

The water in the basin, which is freed of particles, comes out of the filter and is directed to the biological part of the filter.

As the dirty water passes through the drum, the particles settle out, blocking the small holes in the membrane which gradually clogs.

The passage of water is slowed down, causing a difference in level between downstream and upstream of the sieve.

At this time, the detection system starts a drum cleaning cycle. From this moment, the drum turns very slowly and the nozzles placed on the upper part (external side of the drum) project water jets on the filter membrane: under the pressure of the water, the smallest dirt is expelled from the filter membrane.

This dirt is collected in a gutter and directed to the sewer. The upstream / downstream water level is restored until the next cycle.

This cleaning is minimalist: it only intervenes when necessary and the drum only rotates.

This model also includes a biological filter: the water first passes from the drum part (mechanical filtration) to the biological part from where it will then be evacuated to the basin.

BENEFITS

> internal pressure pumps (silent)

> UV immersion 80 Watt Amalgam included

> prices among the most affordable on the market.

> direct drive by gear motor: no visible pinions/crown gears that are sensitive to wear!

> level sensor with 2 floats, easy to control!

> Pumping or gravity mode: select your choice from the menu above!

DIFFERENCES FROM THE HAPPY MODEL

UVC of 80W INOX instead of 40 Watt

Larger drum Ø 50cm instead of Ø 40cm

200 liters Hel-X + 3m² of carpet instead of 100 liters Hel-X + 2 m² of carpet

4 air diffusers instead of 2

DIFFERENCE WITH BASIC COMBI 25/30 XL

UV of 80 Watt INOX instead of 40 Watt

Larger drum Ø 50cm instead of Ø 40cm

200 liters Hel-X + 3 m² of carpet instead of 150 liters of Hel-X + 3 m² of carpet

Partition instead of tubes

Characteristics

Options

Air pump.

As standard, the filter is offered with filtration media: it is possible to acquire it empty, therefore without biological filtration. This empty model is nevertheless sold WITH UV, pump, diffuser, regulation etc. it is therefore functional. The only difference is whether or not organic media are delivered, as desired! If you are interested in an empty model, contact us!

Transport

The price of transporting this item cannot be reasonably calculated in advance because of the numerous variables: location, weight, volume, ordering additional items, possible discount etc.

Rather than having a package which is often very penalizing, we prefer to calculate the price, on a case by case basis.

The price of the port is decreasing: the more value you load on your pallet, the more you give us the means to lower the price of the port (or even to make it free).

A price offer follows your order: you have the choice to accept or decline.

If in the meantime, a payment has been made, the reimbursement will intervene upon your cancellation email.

You also have the option of consulting us before placing an order.
