Drum filter Inazuma Quantum 90 BioKompakt

The Inazuma Quantum 90 Biokompakt drum filter filters your pond thoroughly, reliably and automatically without the need for consumables, thus saving energy and conserving resources.

It is suitable for ponds with a capacity of up to 90 m³ and koi ponds with a capacity of up to 50 m³.
Thanks to a clever design, the filter can be used for a pump-mode configuration or for a gravity-fed configuration.

Inazuma uses food-grade and industrial-grade V2A stainless steel for the filter housing. In addition, Inazuma drum filters are equipped with features such as dry-running protection, safety overflow and much more as standard equipment.

One of the most attractive aspects of an Inazuma filter is its low maintenance costs. It only requires purified pond water for the backwash process and does not use consumables such as filter material. Instead, impurities are efficiently removed from the system by the robust drum with 50 micron V2A stainless steel mesh.

For increased comfort and user-friendliness, the filter cover is reversibly hinged and has gas-pressure hydropneumatic dampers for easy opening and closing of the filter.

Installing your filter is extremely simple. The filter is delivered fully assembled and ready to install.

All you have to do is place the filter, connect it to the pipework.

Previously you will have chosen between a standard controller or a connected controller (optional)

because the controller is not included with the filter, you must therefore acquire the filter of your choice AND a controller:

Either the standard controller Clever V8

Or the connected controller WebCSA

Both of these controllers are obviously available in this category "Inazuma filters": they include all the necessary sensors and are easy to install (manual in FR -EN - DE).

For those looking for simplicity, the microprocessor controller Clever V8 is suitable for each drum filter. Based on our 15 years of experience in filter construction, the optimal parameters for backwash times, duration and other indicators are firmly programmed into the control unit.

For even more comfort and flexibility, there is the WebCSA V2 control system compatible with the Internet. With the WebCSA app (Android and iOS), you can easily view and control numerous parameters from anywhere in the world with your smartphone or tablet.

The system can be customized to your needs with features such as the PowerSwitch extension, temperature sensor and level control.

The WebCSA control system can also be used with the app even without an internet connection.

The guaranteed supply of spare parts directly from the manufacturer for 10 years ensures long-term satisfaction with a robust and low-maintenance filter made in Germany.

The performance of large drum filters is now also available for the garden pond. Installation, complicated connection, a thing of the past. From now on, garden ponds can be equipped with SIMPLE automatic filtration.

The Quantum model enables mechanical water cleaning with very high filtration fineness. When cleaning the water by the drum, larger particles of 50 microns are retained by the stainless steel sieve.

The solid construction made of V2A stainless steel makes the Inazuma a solid and reliable machine for many years. With an unmatched finish!

And with the quality "Made in Germany" the 2-year warranty is included

A pre-mounted bracket is also included but not the UVC lamp(s).

For those who do not know how a drum filter works

The filter mainly consists of a tank in which a rotating drum is housed: this drum is coated with a 50 micron (0.05 mm) filter membrane on its periphery.

The dirty water coming from the pool is directed inside the drum and, to leave this filter, the water must pass through the filter membrane. The pool water, which is freed from particles, then passes into the biological chamber of the filter.

As the dirty water passes through the drum, the particles settle, obstructing the small holes in the membrane, which gradually clogs.

The passage of water is slowed down, which causes a difference in level between the downstream and upstream of the sieve.

At this point, the detection system starts a drum cleaning cycle. From this moment, the drum rotates very slowly and the nozzles arranged on the upper part (external side of the drum) project jets of water onto the filter membrane: under the pressure of the water, the smallest dirt is expelled from the filter membrane.

This dirt is collected in a gutter and directed outside the filter. The upstream/downstream water level is restored until the next cycle.

This cleaning is of the minimalist type: it only occurs when necessary: ​​the consumption of water and electricity is therefore negligible.

This model includes a mechanical filter AND a biological chamber for moving bed (chamber with Hel-X 17)

FEATURES

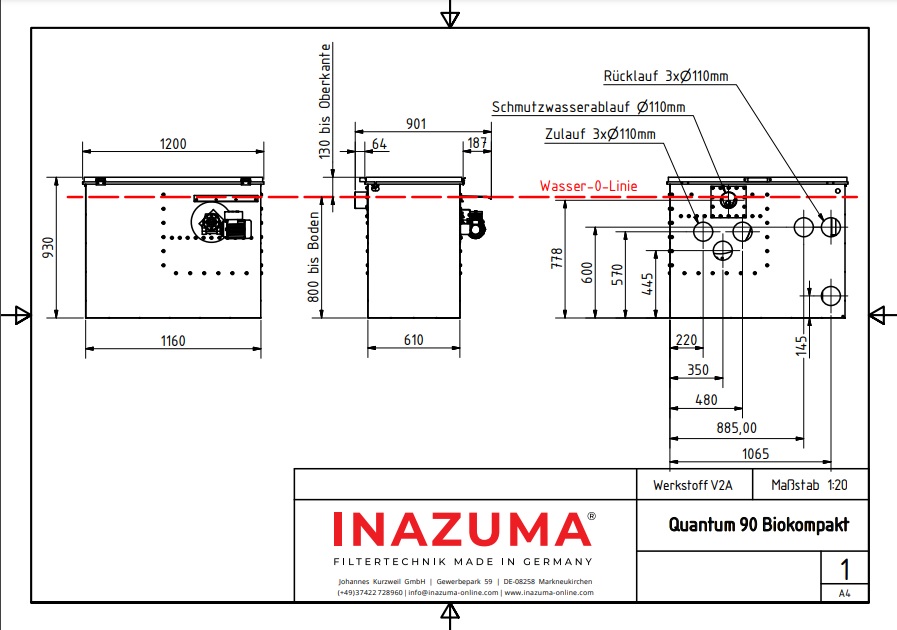

In addition to the filter features described below, you can also download the plan for this model.

Options

UVC lamp, strainers, biological support (Hel-X 17), controller

Operating diagrams

Vidéo

Video with animation describing how the drum filters work (model shown is not Quantum)

TRANSPORTATION

The free transport of this article does not apply since the transport is imperatively on pallet and not by simple parcel.
The price of transporting this item cannot be reasonably calculated in advance due to the fairly numerous variables: location, weight, volume, ordering additional items, possible discount, etc.
Rather than applying a fixed price which is often very penalizing, we prefer to calculate the price, on a case-by-case basis.
The price of shipping is decreasing: the more value you ship on your pallet, the more you give us the means to lower the price of shipping (or even make it free).
A price offer follows your order: you have the choice to accept or refuse.
If in the meantime, a payment has been made, the refund will take place as soon as you send your cancellation email.
You also have the possibility to consult us before placing an order.
