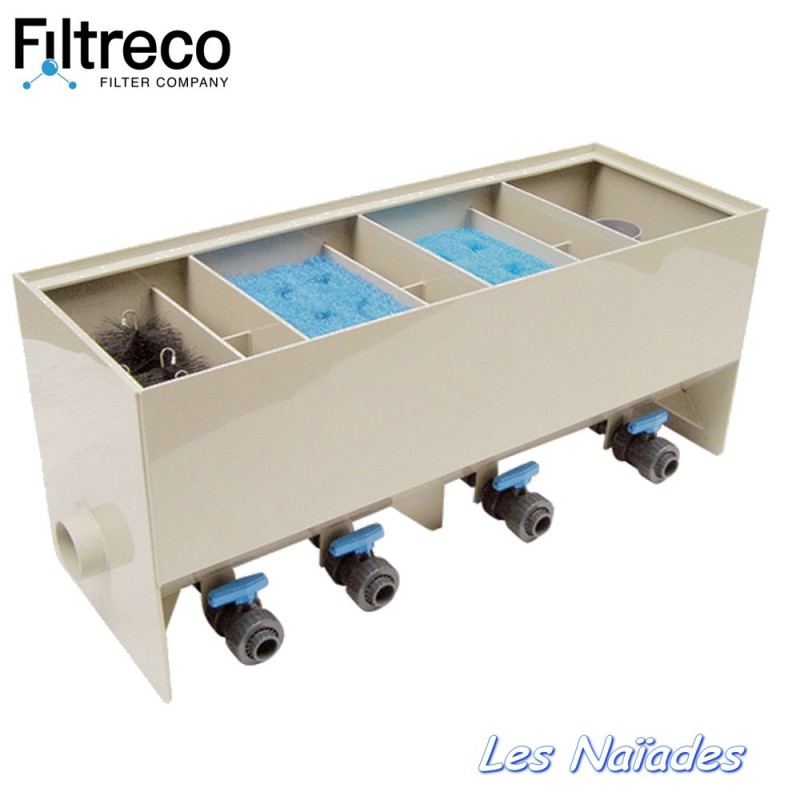

Filter 4 Chamber Small Filtreco

100202

Filter 4 Chamber Small Filtreco

1 360,00 € tax incl.

How does this filter work?

The filter consists of a 4-chamber tank in which water is pumped from the basin. The outlet of the filter being above the level of the basin, the water returns to the latter via a pipe whose slope allows the flow of the water towards the basin.

In this way, the filter operates in pumping mode: it can however also operate in gravity mode. The basin must be fitted with a bottom drain, skimmer and suitable pipes.

Dirty water from the pond is directed into the first chamber where the brushes hold particles, seaweed leaves etc.

Being freed from this waste, the water then passes through the various biological chambers of the filter. These chambers contain supports, the nitrifying bacteria find there surface to develop and participate in the biological purification.

The first two organic rooms are used with Japanese carpet: classic and efficient!

This type of filter requires maintenance, which consists simply of maintaining the brushes in an acceptable state of cleanliness and regularly purging the chambers to empty the sludge.

The last organic room is empty: you have to choose a complementary bio media, optional.

Advantages and strong points of this model

Model in polypropylene, compact.

Very nice finishes materials.

Good filtration materials.

Characteristics

Mode de filtration pompage / gravitaire
Matériau polypropylène, couleur Sahara

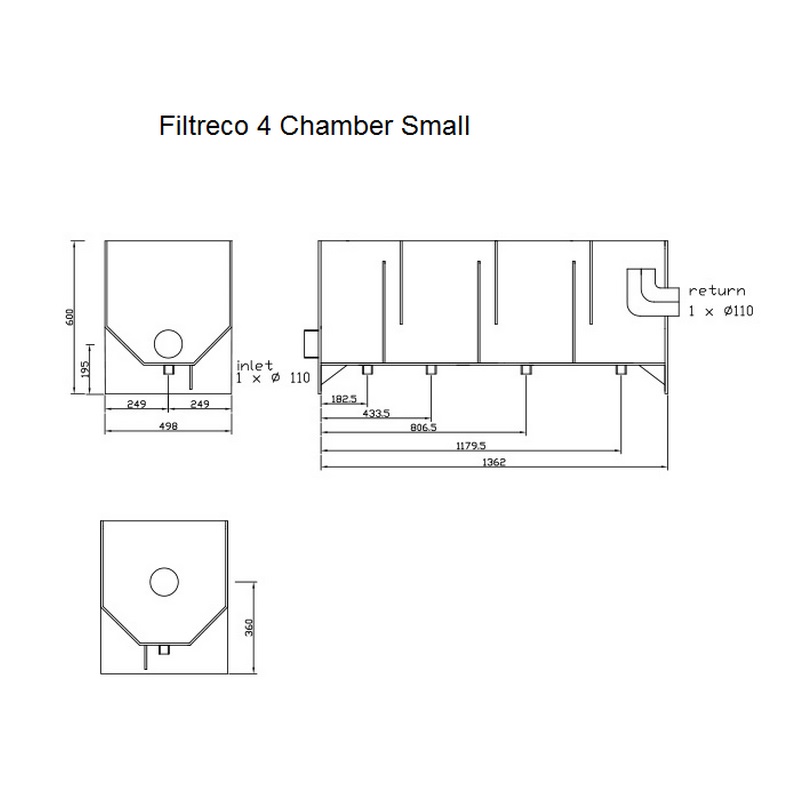

Dimensions L x l x H mm 1362 x 498 x 600
Débit maxi m3 / h 8
Entrée mm 1 x 110
Sortie mm 1 x 110
Sortie eaux usées mm 4 x 40
Chambre 1 inclus brosses
Chambre 2 inclus tapis
Chambre 3 inclus tapis
Chambre 4 vide
Inclus 4 vannes, raccords
Inclus couvercle
